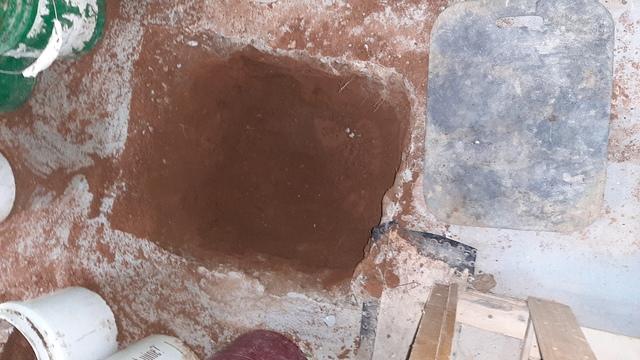

2' x 2' x 2' hole
hole is dug in the floor which is twice as wide as the SmartJack base. this is filled with gravel to create a bulb of influence to support the Smartjack and distribute the load through the entire area. Not just from the bottom
Smart Beam
Different length of beam are attached together to make one solid beam

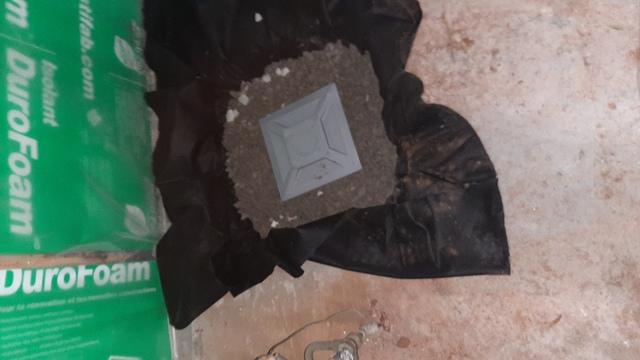

Base plate on gravel
once the gravel is installed and tamped down, the base plate is placed on top

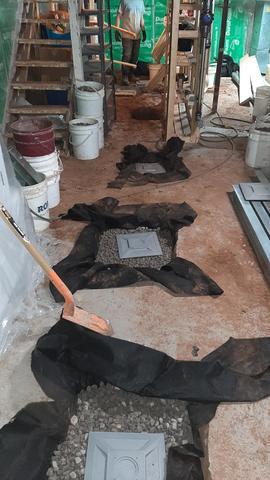

Bases ready to support Smartjacks
Once all the bases are in place, we can add the galvanized tubes

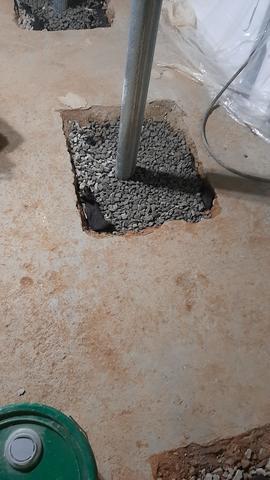

Gavanized post
a galvanized post is placed on the base plate. later this will concreted over

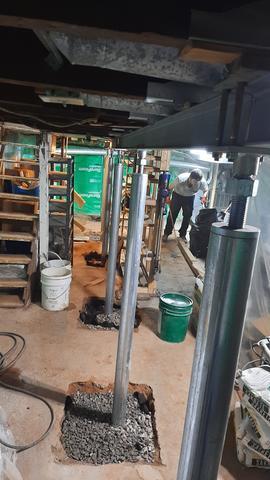

SmartJack system
The SmartJack system is now connected to the SmartBeam to support the house.

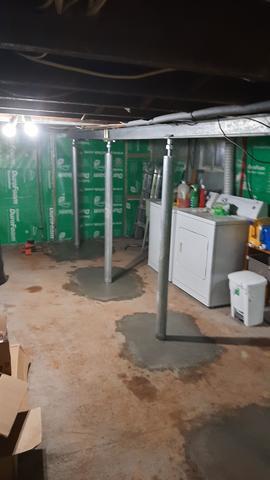

Floor concreted
Once everything is in place, the floor can be concreted over
