Photo Album: Support sagging main beam under garage floor in Guelph, ON

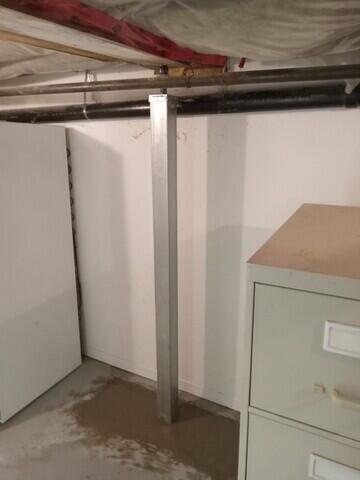

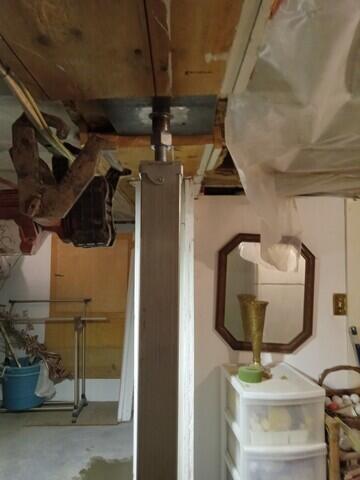

Terry has home in Guelph, On that has a room under the garage floor. The problem he experienced is that the beam under the floor was sagging. This is a problem because there are two cars parked over top of the beam. Omni Basement Systems, along with an engineering firm designed a support system using the Galvanized Smartjack XT and an engineered cast in place footing.

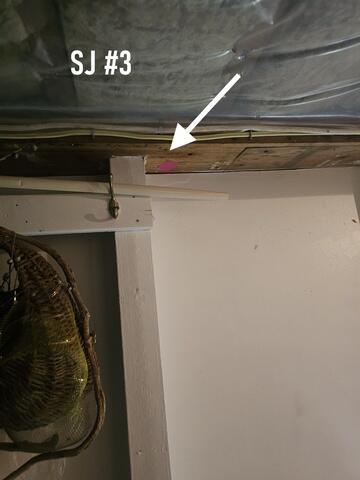

2 X 4 lumber holding up main beam under garage

This is a grossly undersized support for something as heavy as a garage floor that has two cars on top.

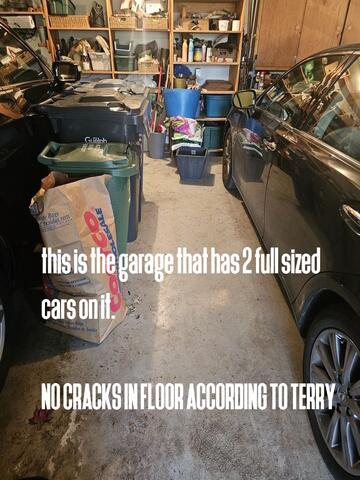

Garge over room in basement

Would you park your car on something that was support by 2x4" lumber?

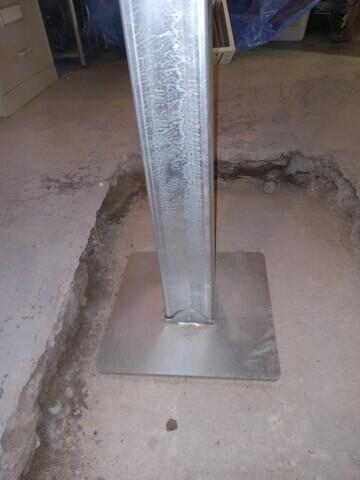

Large footing with steel plate

Earlier, a large cast-in-place footing was poured under the concrete floor. Once the footing cured, the Smartjacks could be installed. Here a large steel plate goes on top of the cast in place footing
