Photo Album: Partial Interior Drainage system in Burlington, ON

P.J. had one wall n his Burlington residence that had ground water issues. He knew he had to removed the finished walls in order to install the drainage systemPhil from Omni Basement Systems came and recommended the WaterGuard drainage along with a SumperSump sump pump system. The Discharge was a little tricky but it was worth while. The discharge had to go up into the floor joist system to exit on the opposite side of the house. The customer was very pleased with this process.


Tuff Top Lid

This sump pit was fitted with a Tuff Top lid option. This is a thick lid that is completely flat on the floor so the customer does not lose any floor space.


Sump pit

This pit is perforated to allow water under the floor to enter into the pit.

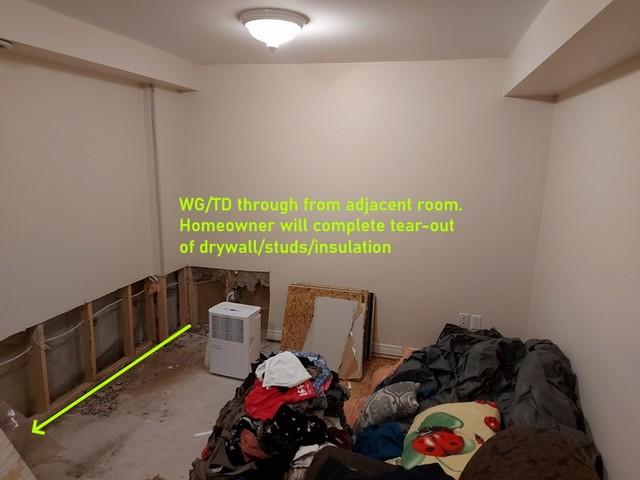

Walls to be torn out

To do this system properly, the walls need to be torn out

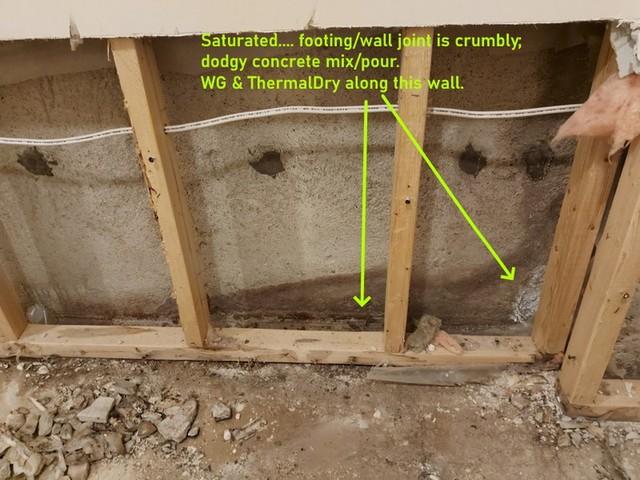

Ground water

Ground water is visible at the bottom of the wall

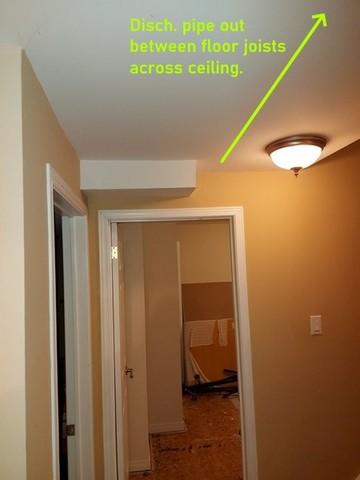

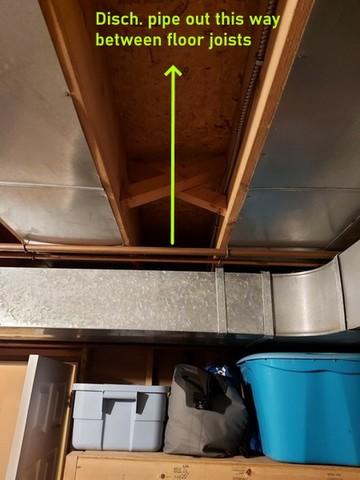

Tricky Dischage

It is important to get the water away from the house and also where it wont cause a slipping hazard in the winter. The best place was on the opposite side of the house from the sump pump. To dod this, we had to put the discharge pipe up into the floor joist system
