Gerald W. in Burlington called and said he was concerned about horizontal cracks in his block foundation walls.
The timing for his call couldn't be better because if he has left it any longer it would have gotten worse and required a lot more work with more expensive procedure. Omni Basement system with products of Supportworks designed a system to stabilize the block walls from bowing any more.
Omni Basement Systems adhered 7" wide strips of carbon fibre called Carbon Armour to the wall with Epoxy. The stprips were also attached to the rim joist using Armour locks from Supportworks. Teis system ties the wall into the floor joist system of the house for added support to the wall. The last proccess is to solidify the bottom 3 courses of block by filling the cavities with fibreglass infused grout.
PRepare for carbon strips
THe wall is first ground down to reveal clean concrete to adgere to
Cracked mortar oint
Horizontal crack in mortar joinsts. Most likely from frost
Blocks ground down to prepare for epoxy
In order for the epoxy to adhere to the blocks, they must be ground down so that the epoxy will go deep into the pores of the concrete.

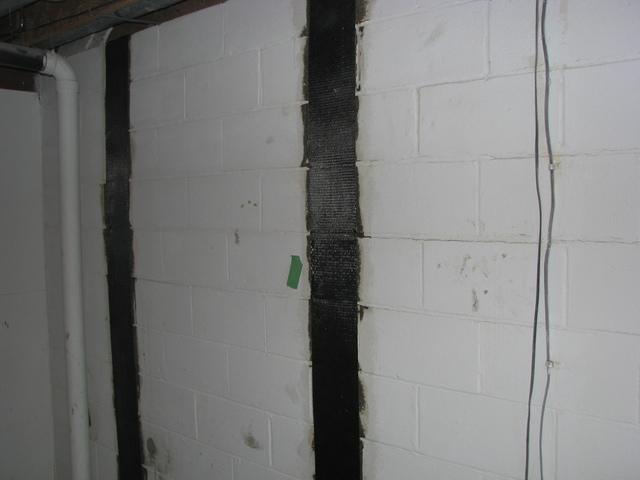

7 inch wide carbon strips are applied to the wall.
Carbon fibre ia 10 times more stronger than steel and is goes on like a cloth. once it is epoxyed, it becomes hard and extremly strong
Armor lock
Armor lock joins the Carbon fibre strip to the Rim Joist using a steel strap and bolts. This prevents tipping of the wall due to outside
Grouting block
The bottom three courses of blocks are filled with grout in order to solidify the wall for additional support to the wall
